WAI Platform 24 Blue Deck
Modular fiberglass floating platform

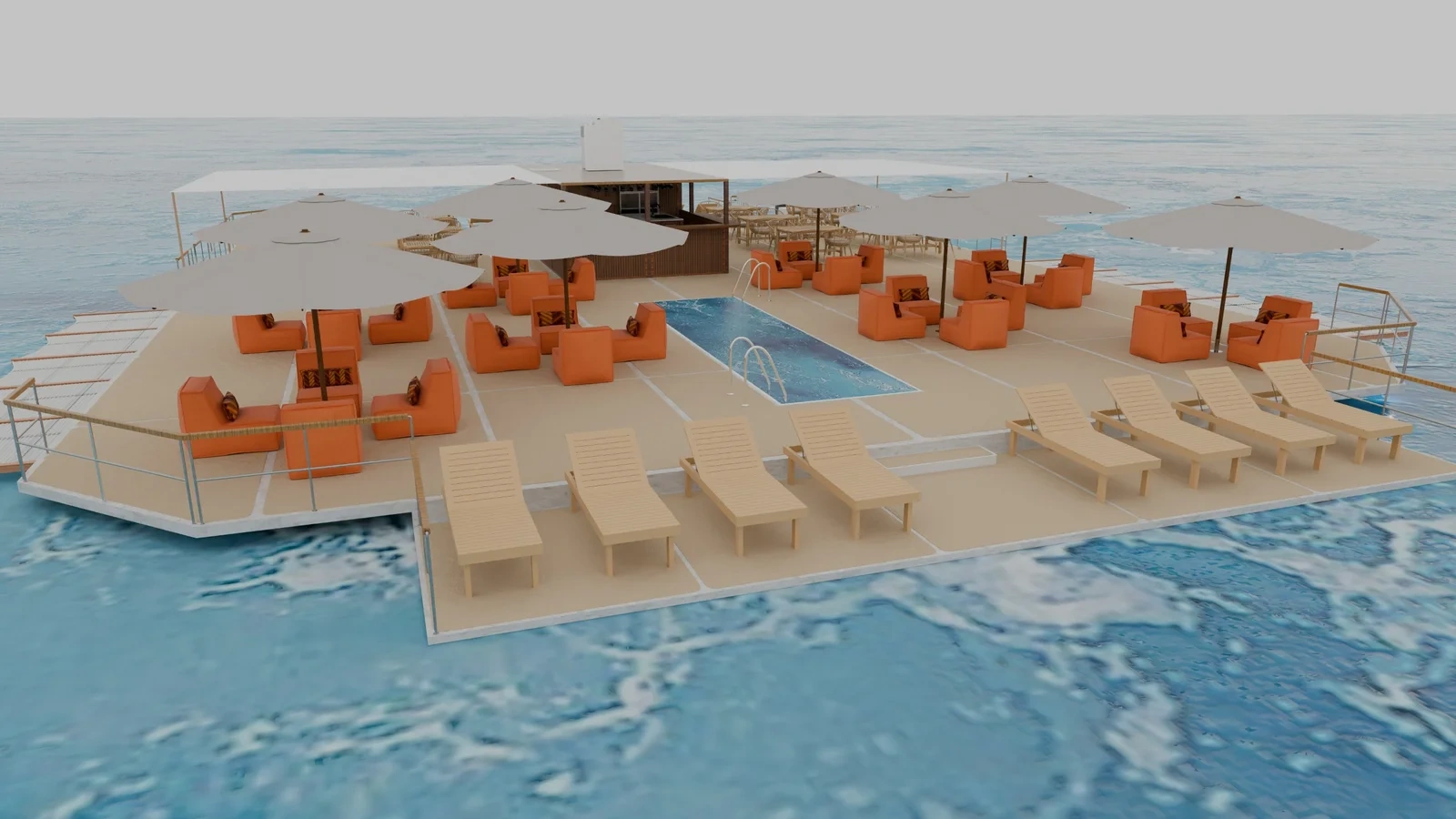

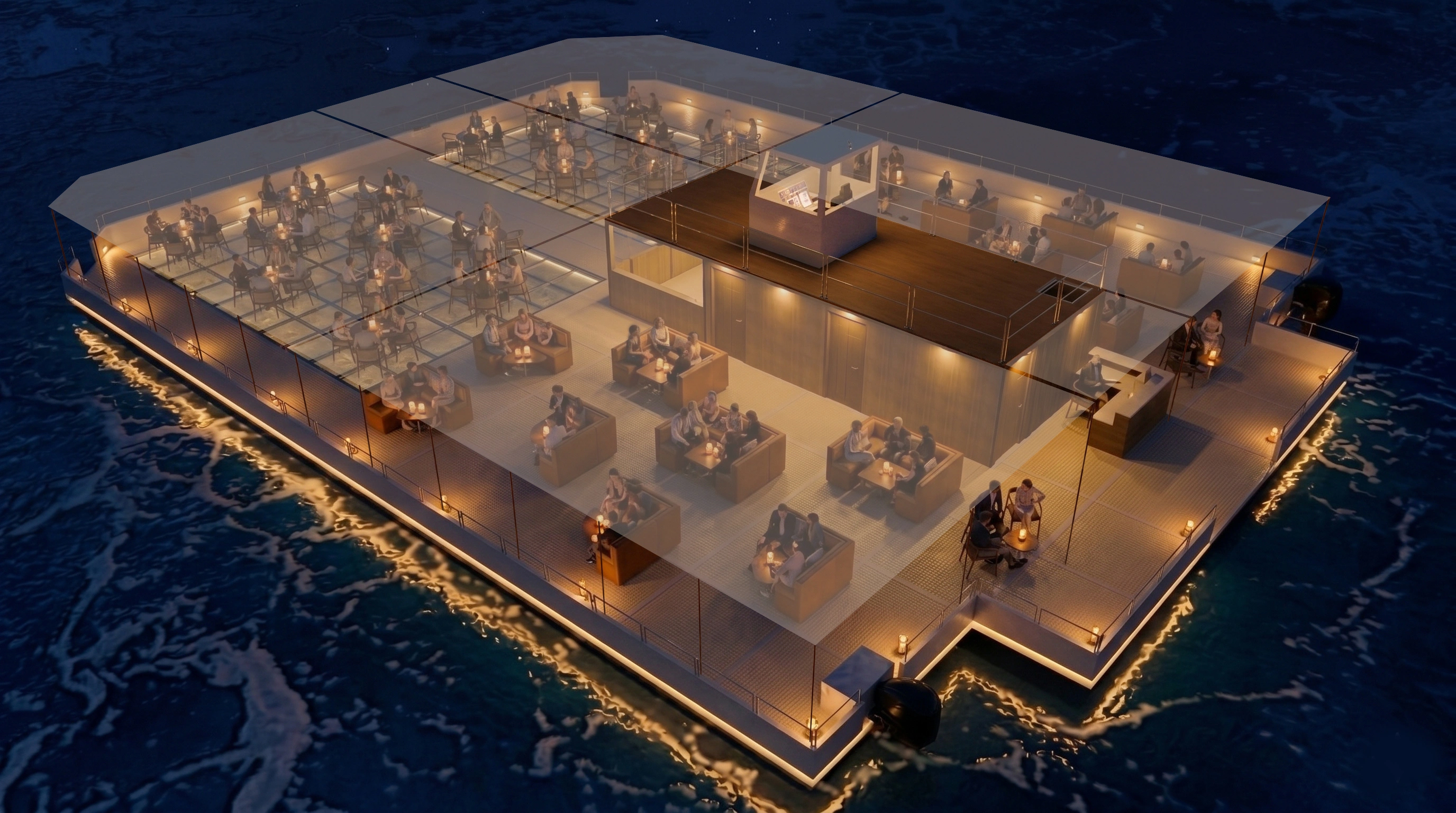

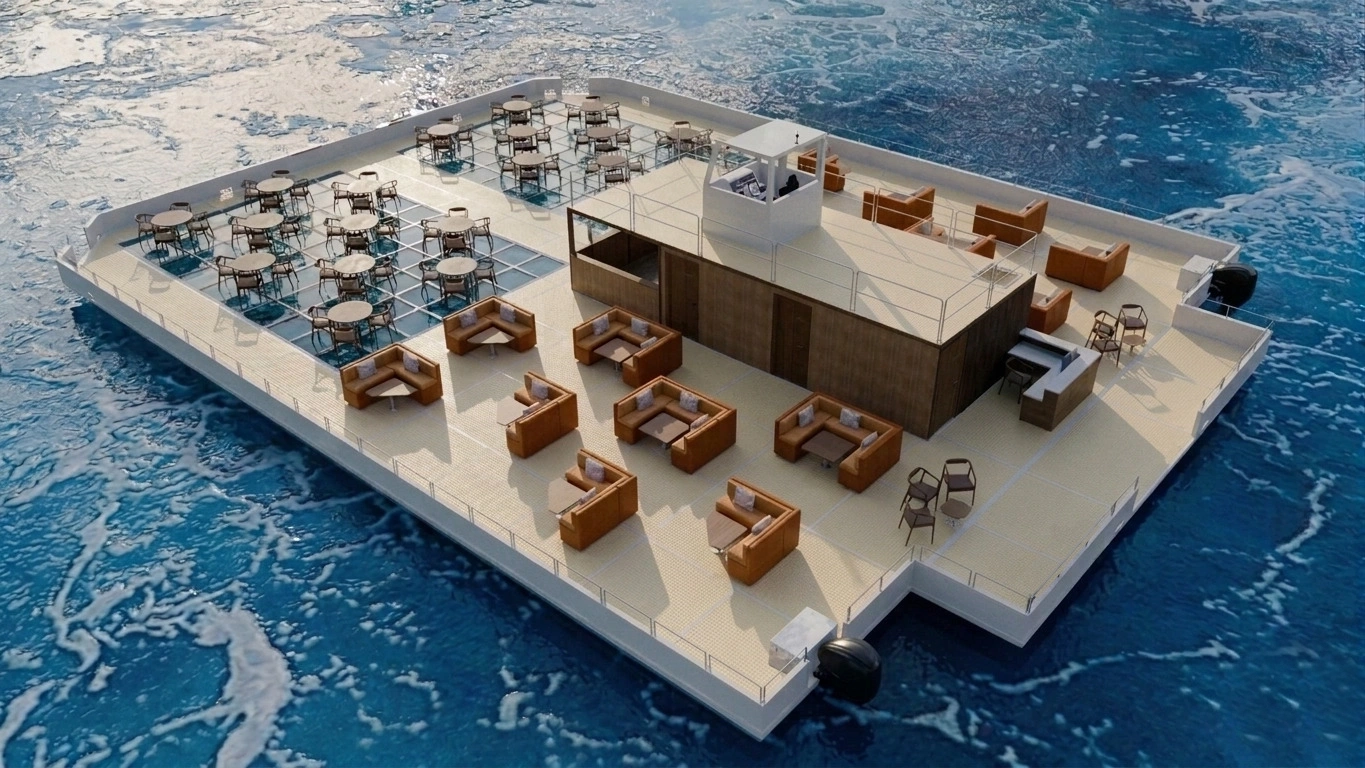

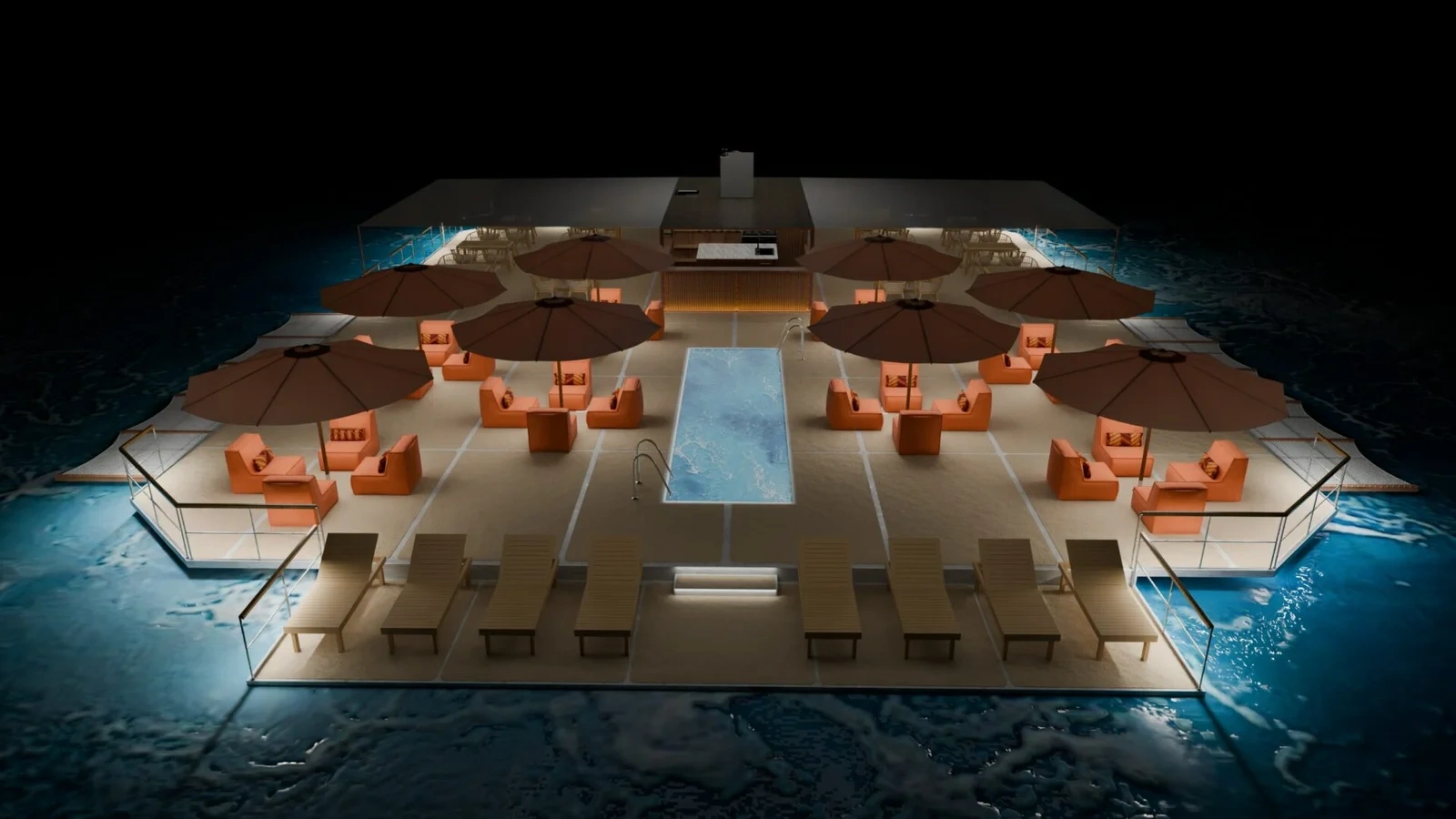

WAI Platform 24 Blue Deck is a modular fiberglass floating platform, designed and built for tourist use. It is anchored to the seabed using concrete blocks and chains. The structure consists of 7 fiberglass hulls supporting a rigid galvanized steel framework, onto which the flooring that forms the platform is placed and fixed. This configuration ensures maximum stability and resistance to wave motion, unlike other types of structures that are subject to oscillation caused by waves. Navigation is possible in calm sea conditions and at low speed. Propulsion (optional) is provided by two outboard engines of max 150 hp, with a control console located on the roof of the technical room. The platform’s stability allows for the installation of furniture, umbrellas, and sun loungers
Technical Specifications
GALLEGGIABILITA’
• 5 x watertight reinforced fiberglass hulls measuring 12.00 x 1.00 x 1.00 m
• 2 x watertight reinforced fiberglass hulls measuring 6.00 x 1.00 x 1.00 m
Each hull is compartmentalized by internal bulkheads installed every 2.00 m and filled with closed-cell foam.
The hulls are externally coated with gelcoat.
ENGINES - PROPULSION
Propulsion
2 x outboard 150 hp – 2 x 120 L fuel tanks - Engine control panels on the helm station
Rudders and steering system
Hydraulic steering system
Flybridge helm station
Access from the technical room - Semi-enclosed fiberglass cabin – Front window – Console Captain's seat – Stainless steel handrail

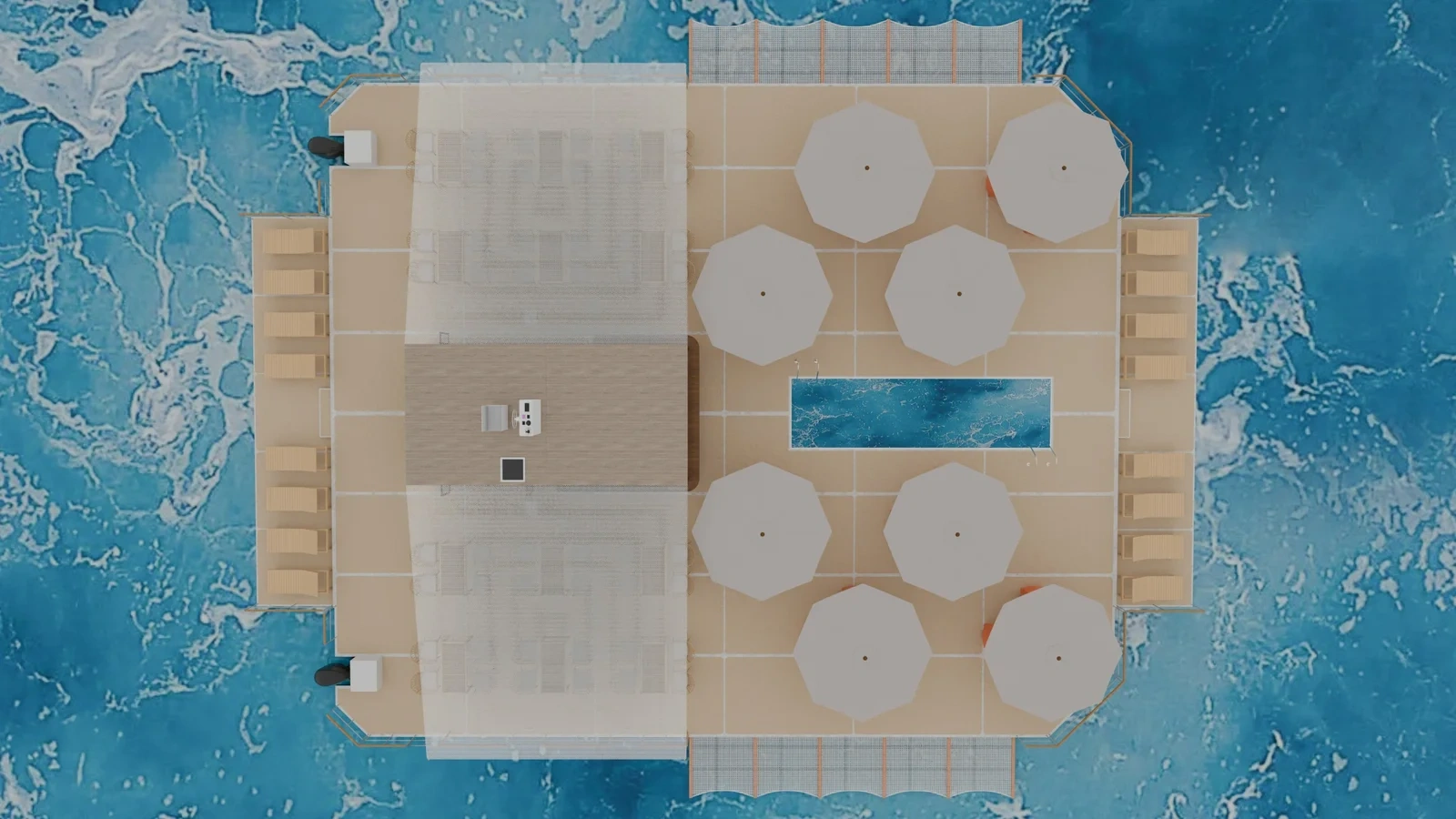

PLATFORM
• Deck support via modular hot-dip galvanized steel lattice structure joined to the hulls
• Deck made of sandwich-laminate fiberglass modules assembled onto the support structure
Deck
• Fiberglass deck with non-slip surface and gelcoat finish.
• 2 x transparent tempered glass deck panels supported by galvanized steel beams.
• Stern platform positioned above the waterline, measuring 14.00 x 2.50 m, with ladder.

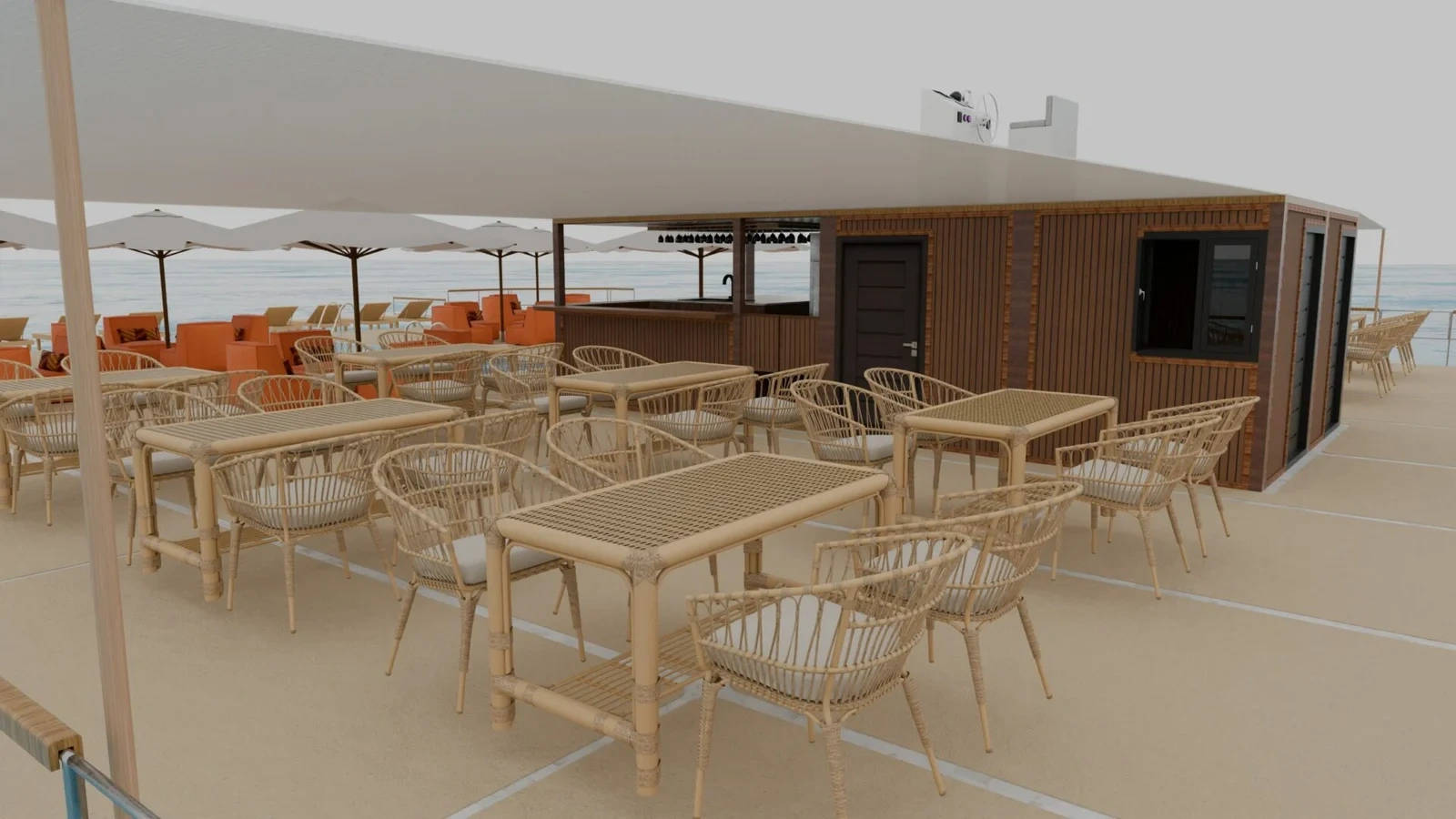

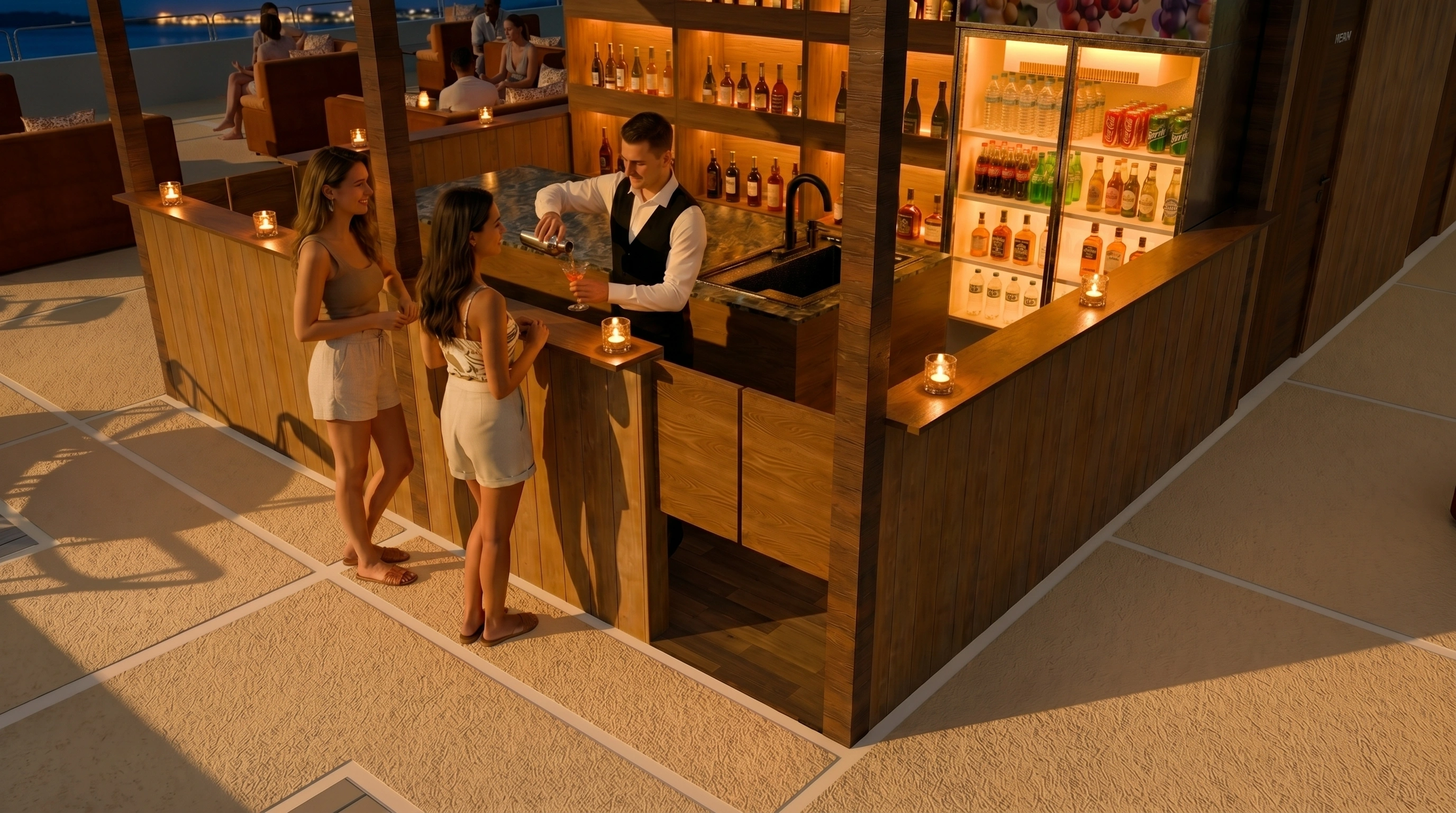

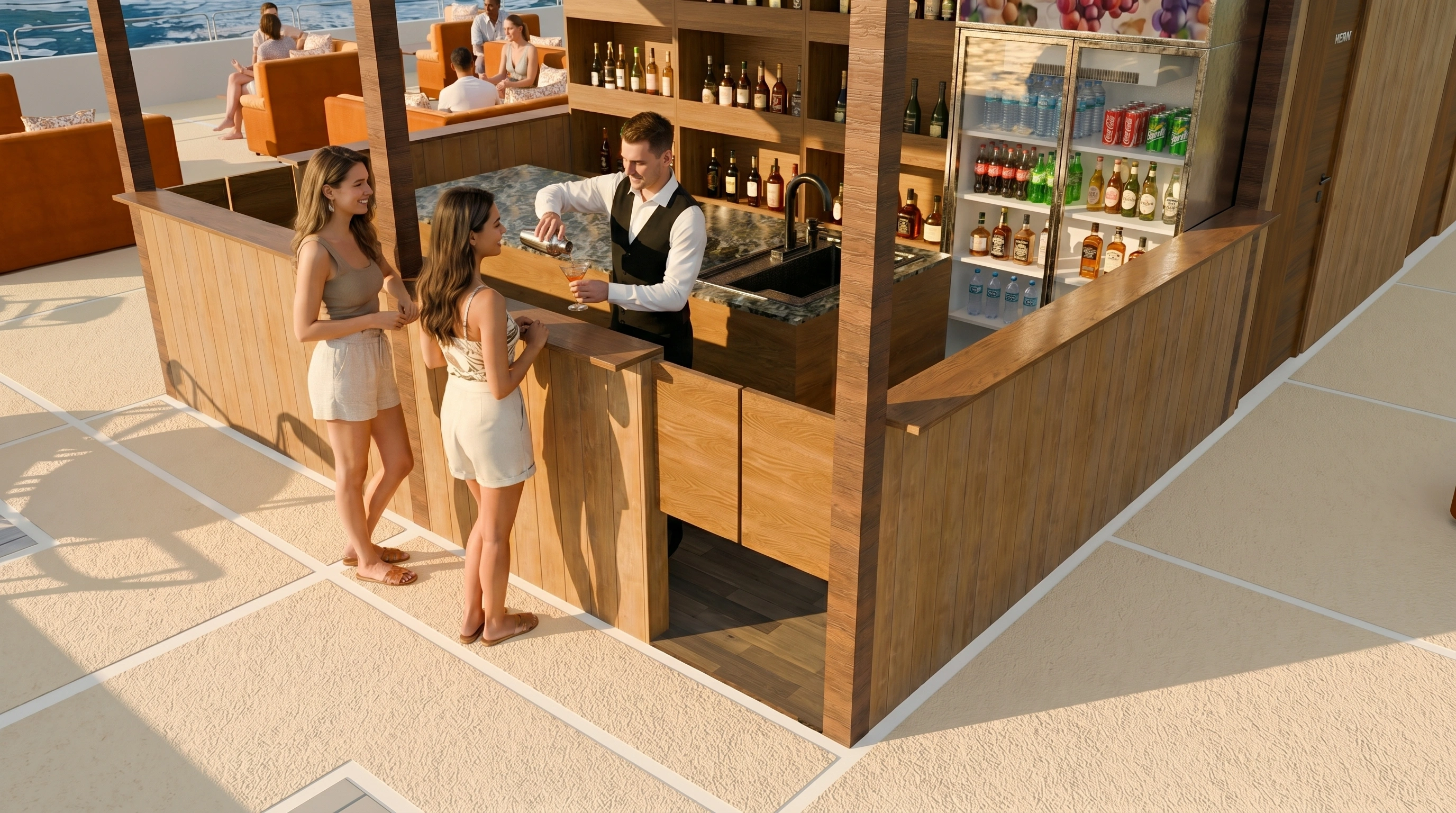

• Mahogany wood gazebo measuring 4.00 x 3.00 m with waterproof walkable roof, surrounding countertop, and entry door.
Inside the gazebo:
- Central wooden island with worktop for bar service
- housing for refrigerators and freezers
- cabinets and drawers
- sink with faucet
Wooden technical room measuring 4.00 x 2.00 m, positioned behind the gazebo
- Access door and windows
- Shelf-type structure for tank housing
- Soundproofed compartment for generator housing
Bathroom compartment measuring 2.00 x 2.00 m, positioned adjacent to the technical room
- 2 x access doors (men – women) and ventilation windows
- 2 x electric macerating toilets – 2 x sinks
Kitchen compartment measuring 4.00 x 3.00 m, positioned adjacent to the technical room
- Access door and ventilation window
- Diamond-pattern aluminum flooring
- Aluminum interior wall cladding
- Pre-arrangement for kitchen equipment installation
- Electrical and water connections
Waterproof fabric sunshade supported by a stainless steel structure
Fiberglass bulwarks all around
Stainless steel and wood handrail
Attrezzature ed accessori
• 2 x stainless steel ladders on the stern platform
• 4 x anchoring points with chain hooks for mooring buoys
• Anchor locker
• 6 x mooring bollards, positioned at the stern and on the port and starboard sides
230V electrical system
• 9 kW marine generator
• 230V system and wiring
• 230V control panel
12V electrical system
• 12V system and wiring
• 12V control panel
• 2 x service batteries
• 2 x engine starter batteries
• Battery charger
SYSTEMS AND PIPING
Fresh water system
• 2 x 500 L water tanks each
• 2 x pressure pumps
• Water distribution system
Grey water system
• 2 x 500 L grey water tanks each
• Collection and distribution sump
Black water system
• 2 x 105 L black water tanks each
• Collection and distribution sump
Grey water system
• 2 x 500 L grey water tanks each
• Collection and distribution sump
NAVIGATION
• Console with steering wheel – Compass - Electric horn - Engine controls
• Navigation lights
LIGHTING

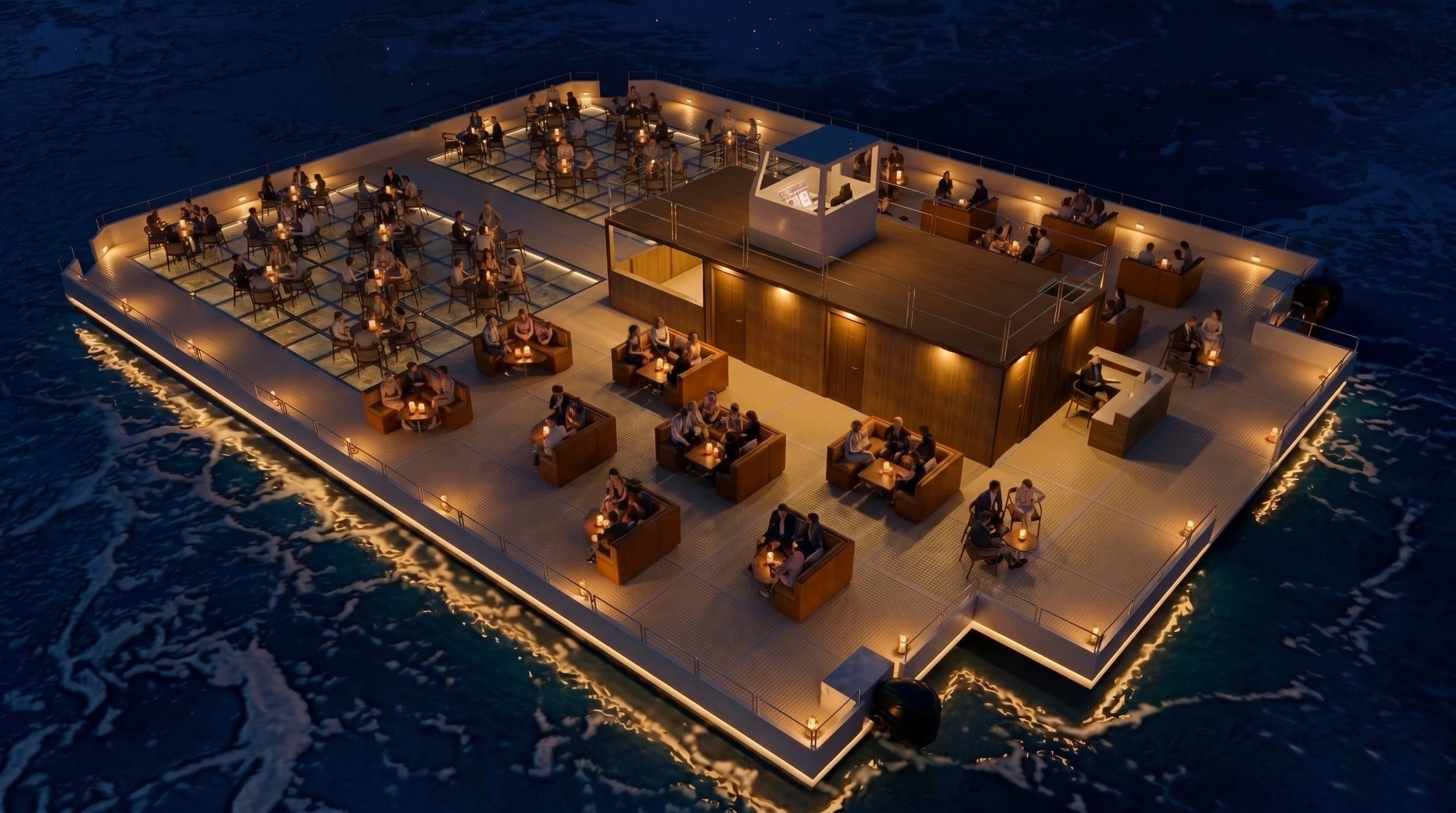

• LED lights on deck, in the gazebo, technical room, kitchen and bathrooms
EXCLUSIONS
• Bar equipment (refrigerators, freezers, etc.)
• Kitchen equipment
• Furnishings (tables, chairs, sofas, etc.)
